The Most Advanced US Foundry for Rad-Hard by Process Technologies
SkyWater’s 90 nm FDSOI technology can enable a range of extreme environment applications including radiation environments and high-temperature applications. The process can enable strategic rad-hard by process requirements and advances the state of the art for these specialized applications inside SkyWater’s commercial fab.
Strategic Rad-Hard
> 1 Mrad
Enables reliability requirements to meet strategic rad-hard category designation
Rad-Hard
> 500 krads
Suitable for deepspace deployments
Rad-Tolerant
> 300 krads
Medical applications and low-earth orbit deployments
A developing platform will advance the rad-hard category.

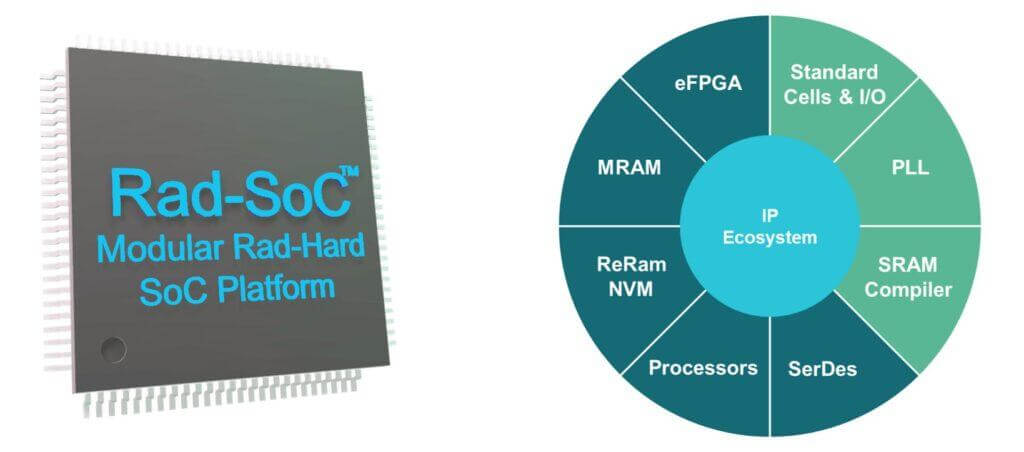

A range of IP offerings contributed by key partners are developing and will enable modular Rad-SoC solutions.
Do you have IP you would like to offer on the Rad-SoC platform? Contact us to get the process started.

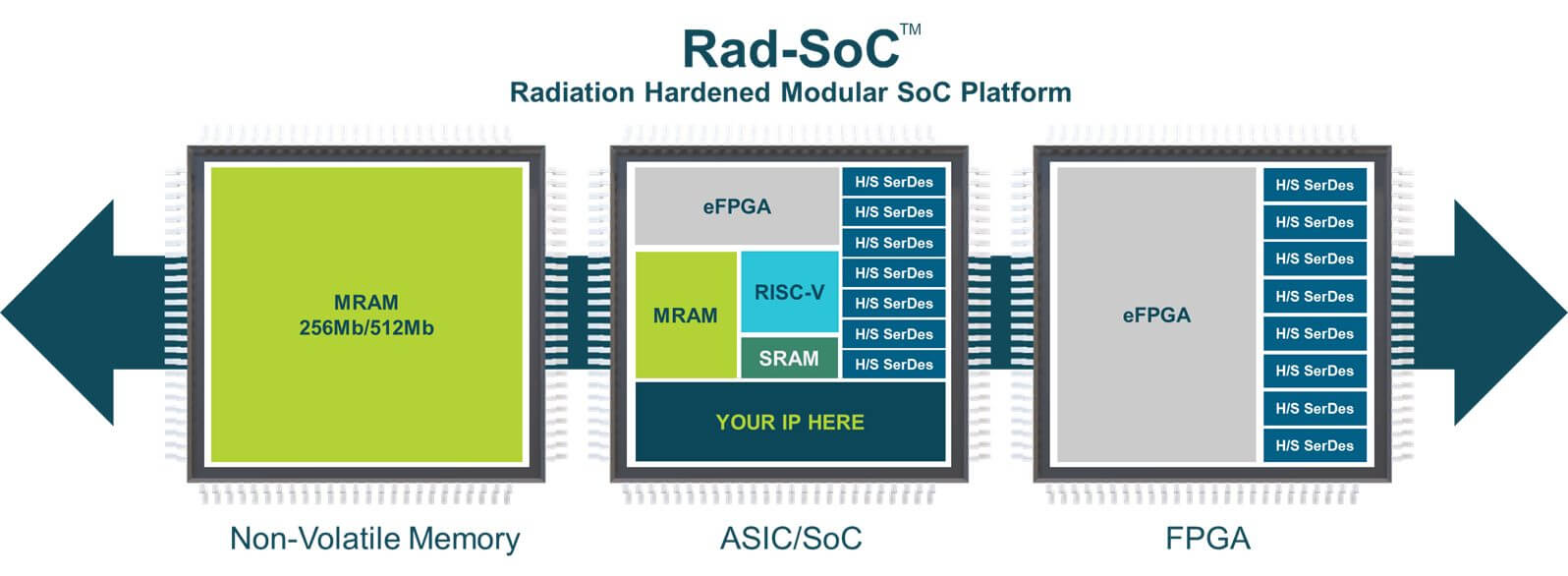

The developing IP ecosystem will enable a spectrum of rad-hard solutions ranging from pure non-volatile memory to ASIC/SoC to FPGA designs.
Scroll for More
| Attribute | RH90 |
|---|---|
| # Layers Metal | 7 (5 Cu, 2 Al) |
| SAC Contact | N |
| Low-power SRAM | Y |
| Isolation | STI |
| Gate | CoSi2 Silicide Poly |
| FET voltages | 1.2V core / 3.3V |
| MiM Capacitor | Y |
| Precision Resistor | Y |
| Inductor | – |
| OTP | (in development) |
| Polyimide | N |
| Dual-Damascene Interconnect | Y |
| Substrates | SOI |
90 nm Strategic Rad-Hard By Process Early Access Program
SkyWater is selecting a limited number of organizations to participate in an early access partner program for the 90 nm Strategic Rad-Hard by process technology.
Early Access Program Benefits
- Receive exclusive pre-market communications and program updates
- Represent your technology needs and contribute definition of design and platform IP requirements
- Participate in design engagement planning
$170M Investment for Rad-Hard Technologies

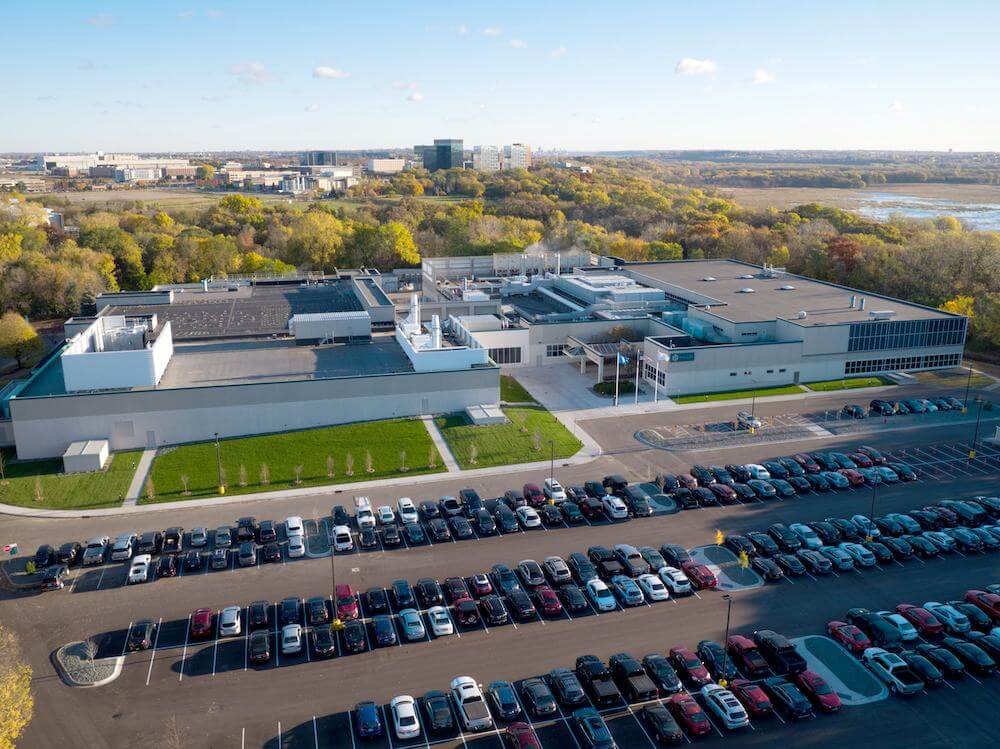

BLOOMINGTON, Minn — October 21, 2019 – SkyWater Technology, the innovator’s trusted partner for a competitive edge, announced the U.S. Department of Defense is planning to invest up to $170 million for a multi-phase project to enhance microelectronics capabilities for the DOD and the Strategic Radiation Hardened (Rad-Hard) market. SkyWater will be expanding its Trusted Foundry facility to add clean room area and supporting infrastructure to enable this and other complementary technologies.
Read The Press Release
